Use:

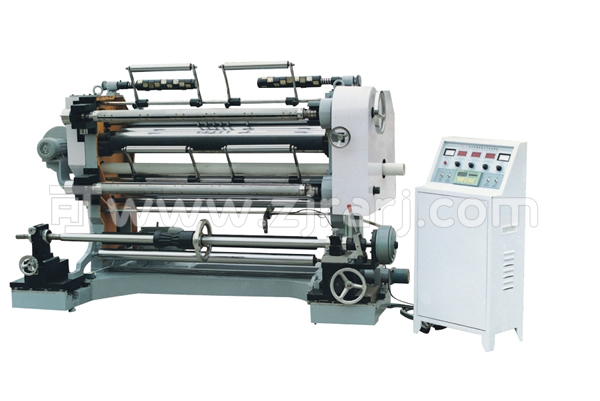

This machine is applied to slitting the drum-type materials like plastic films, paper glued tapes, al foils, insulation paper, glass paper, etc. it has photoelectric cells, auto verifier, tension controller, winding counter, counter stop, etc. the computer controller and auto slitter are adopted for this machine. As a result it is characterized by compact construction, complete functions, easey operation, and stable running.
The Function and Characteristic:
1.Vertical sonctruction, collector and feeder at the same side, featuring in easy operation.
2.The chassis and the wall board are made of cast iron, which can assure that the machine can run stably at a high speed.
3.The common shaft is adopted for the unwinder and is fixed with conic telescope in order to apply the basis materials, of which their paper cores will be deformed.
4.The unwinding system is equipped with auto photoelectric verifying system.
5.The air expansion shafts are adopted for the up and down winders and press rollers are also assembled.
6.The winding and unwinding systems are controlled through an independent magenetic powder system.
7.The waste side guide pipe and the large-powered fans can blow the waste sides out from right side.
8.Independent electric cabinet, computer integrated controller, counter, stop while counting.
9.The al guide rails for the integral machine are high hardened al guide rails from Taiwan and have been treated in motion and moveable balance mode.
| 机器型号Model
|
QFJ-800 |
QFJ-1100 |
QFJ-1300 |
| 最大放卷直径（mm）
|
650 |
| 最大收卷直径（mm）
|
450 |
| 纸芯内径（mm）
|
76 |
| 最窄分切宽度（mm）
|
20 |
| 最高分切速度（m/min）
|
170 |
| 纠偏精度（mm）
|
±0.3 |
| 张力控制（N.M）
|
0-50 |
| 电源电压Supply voltage
|
50Hz 380V/220V |
| 放卷最大宽度（mm）
|
760 |
1060 |
1260 |
| 装机总功率（kw）Total power
|
3 |
3.5 |
3.8 |
| 机器重量（kg）Weight
|
1500 |
1600 |
1700 |
| 外形尺寸（mm）Overall dimension
|
1850×1180×1370 |
2150×1180×1370 |
2350×1180×1370 |
