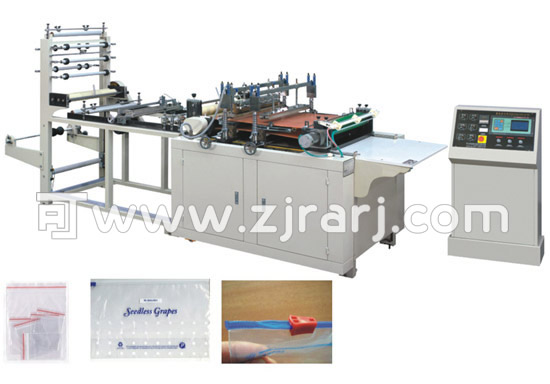

Zipper Bag Making Machine
DATA:2011-05-05

Explanation:
Performance and Characteristics

The machine is a kind of advanced packing machinery. Adopts photo cell
trace, control by computer, step motor feeding (can option servo motor),
adjust speed with frequency conversion, automatically control temperature,
with advantages of simple operation and firm edge sealing etc. The machine
is specially used in sealing and cutting high-pressure PE inter-chaining
bag (which is also called Ziplock bag, beach bag and bone bag.).

Parameter:

Main Technical Parameters:

Model                  ZIP-500                 ZIP-600

Material                 LDPE                  LDPE

Out put                  50~150(Cycle/min)       50~130(Cycle/min)

Max.cutting width         100~470mm             120~570mm

Max.cutting length         120~300mm             150~400mm
