Usage:
Suitable for PE,VA,PP,PE.BOPP material.

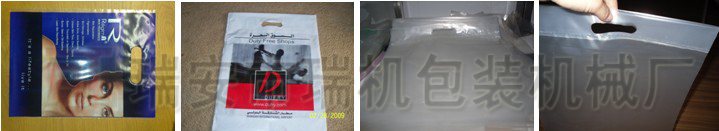

Produce: Soft handbag, tape hand bag, common hot-sealing bags and kinds of special hot-sealing bags. For examples:clothing bag, shopping bag, shoes bag.
Feature:
1.Computer control, stepping motor material-delivery
2.Photosensitive tracking for length
3.Punching by air (hand-link eathe hole)
4.EPC with magnetic powder braking
5.Organ-type bottom inserting, barrel bag opening, Vertical blade hot cutting, auto stick tape (hand-link part stick tape),fold muti-special bags, bag mouth folding-side finalize the design.
6.Main machine material: profiled bar, armor plate
Technical parameter:
Model
|
RFQR-800
|
RFQR-1000
|
Max crosscut length
|
400mm
|
600mm
|
Max crosscut width
|
700mm
|
700mm
|
Max crosscut speed
|
30-110pcs/min
|
20-60pcs/min
|
Orientation precision
|
0.3mm
|
0.3mm
|
Electro-power
|
8.4kw
|
10.2kw
|
Machine Weight
|
1450kg
|
1600kg
|
Overall dimension
|
4700x2000x1900mm
|
4700x2200x1900mm
|
Machine Weight
|
1650kg
|
1800kg
|
